Change Color Schemes

The Color menu in the visual canvas lets you customize and change the color scheme of your visual.

Color schemes provide ways to identify and highlight metrics and attributes on a visual using color. Color schemes are specified for visuals in different ways, based on the visual type.

• The colors on standard bar charts, heat maps, KPI charts, US region maps, world country maps, packed bubble charts, tree maps, and word cloud charts are based on the color metric selected for the visual. Colors can be changed using the Color sidebar.
• The color of multiple metric bar and multiple-metric line charts are based on the y-axis metric you have selected. Colors can be changed using the Color sidebar.
• Visual colors are not available for map marker charts, pivot tables, and tables of raw data.
• For all other visuals (box plots, donut charts, floating bubble charts, line-trend attribute charts, pie charts, and scatter plot charts), the visual colors are based on an x-axis Group field you have selected. Colors can be changed using the Color sidebar.

Color palettes for your Self-Service Analytics environment are defined using themes. In addition, the default color palette used for visuals and for specific visual types is defined using themes. See Manage User Interface Themes.

Access the Color sidebar for a visual

1. Select the visual in the Visual Gallery or on a dashboard.

2. Select Settings on the visual drop-down menu to access the sidebar menu for the visual. Then select the color button on the sidebar menu.

   The Color sidebar for the selected visual opens.

3. Make changes as needed. For details about the color options, refer to the description of the specific visual type used to display the information from your sources as a visual.

4. If you want to use the palette specified by the theme defined for the environment, select the Inherit from theme checkbox. The colors specified in the theme activated for the Self-Service Analytics environment and for this visual type is used and overrides other palette settings you might have specified on the Color sidebar. For more information about themes, see Manage User Interface Themes.

The ability to control colors on a visual is provided using the interactivity sidebar. See Control How Users Interact With a Visual.

Change the Visual Color Metric

You can change the metric used to determine the colors used on a visual while you are viewing it.

Change the color metric while you are viewing a visual

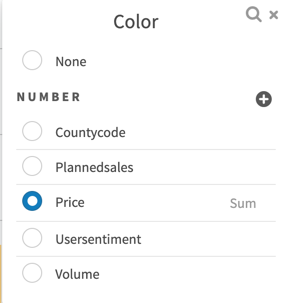

1. Select the color metric directly on your visual. A Color dialog appears.



2. Select a new metric to be used to determine the colors on your visual.

3. Select the aggregation function that should be used with the color metric: SUM, AVG, MAX, MIN, or (for some data sources) LAST VALUE. See Metric Aggregation Functions.

   The visual renders using colors determined by the select metric and its aggregated values.

Change the Axes

Many visual types show data on a standard coordinate grid, with axes labels identifying the values depicted horizontally and vertically on the visual. Examples include bar charts, line charts, and scatter charts.

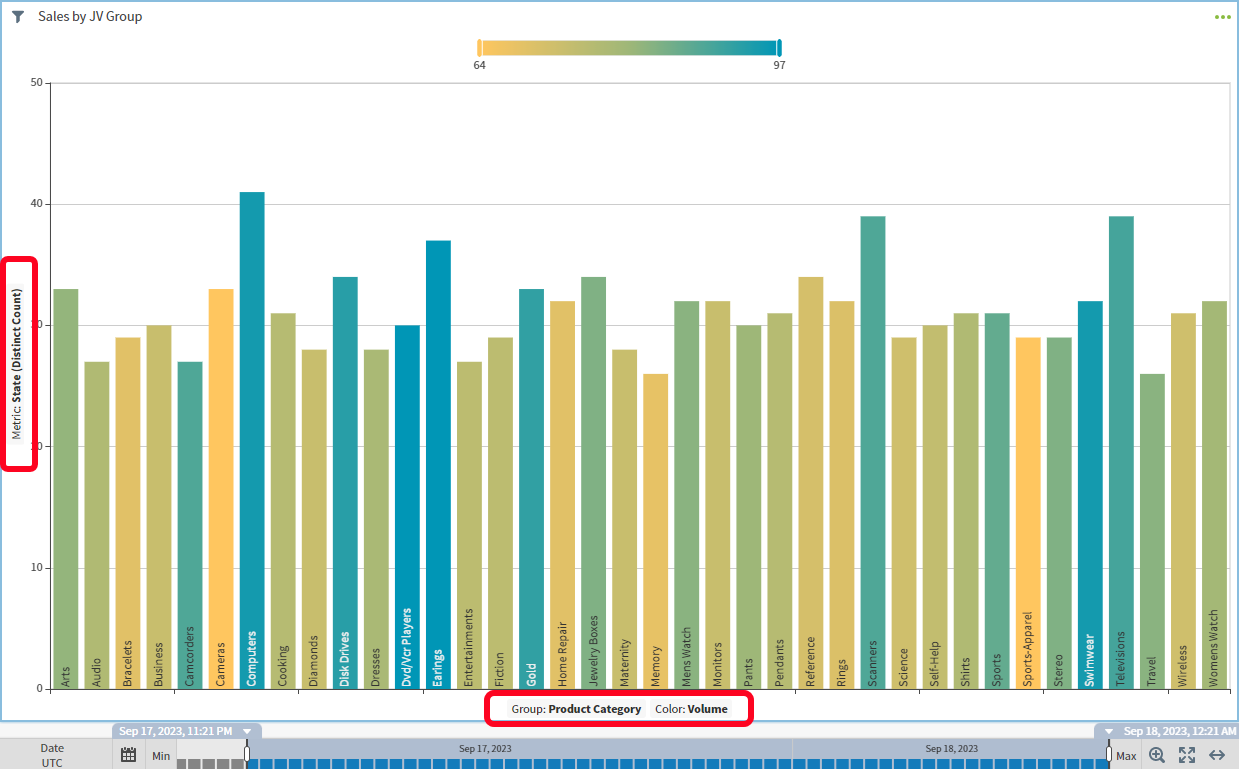

Use the axes labels on these visuals to change the metric (y-axis) and attribute (x-axis) fields graphed in the visual. The number of labels displayed on a visual depend on the number of metrics and attributes on which the visual is based.

You can specify the default labels for visuals on the Fields tab of your data source configurations. Controls for these options are provided using the interactivity sidebar. See Control How Users Interact With a Visual.

See the following topics:

• Change a Group Attribute
• Change a Metric Field

You can also change the metric used to determine the colors on the visual. See Change the Visual Color Metric.

Change a Group Attribute

You can change the x-axis field, or group attribute, on a visual that plots data on a coordinated grid.

Change the visual group (x-axis) attribute

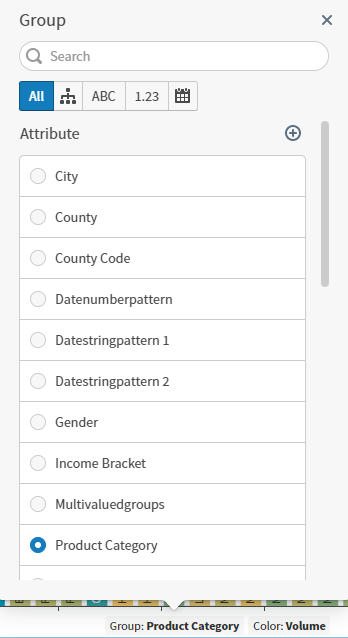

1. Select the group attribute (x-axis) label on your visual. A Group dialog appears.



2. Select a new field to be viewed on the x-axis of your visual.

   The visual renders the newly selected attribute.

Change a Metric Field

You can change the y-axis field, or metric, on a visual that plots data on a coordinated grid.

Change the visual metric (y-axis field)

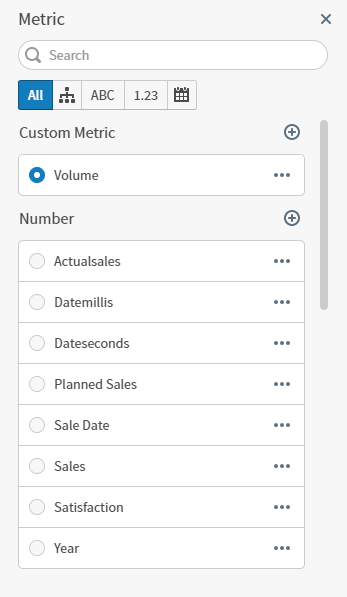

1. Select the metric (y-axis) label on your visual. A Metric dialog appears.



2. Select a new metric to use as the y-axis of your visual and a metric function to use to aggregate the data on the visual. See Metric Aggregation Functions.

   The visual is updated and renders the newly selected metric. If you need to perform more complex analysis of your data set, you can add custom metrics.

Supplied Color Palettes

Self-Service Analytics comes with a number of color palettes. You can add a color palette to your environment using themes. See Manage User Interface Themes.

The following table lists the supplied color palettes that are available for use in visuals. If a palette name has -accessible appended to its name, it is colorblind friendly.

Palette Name	Hex Color Values
Accent	[‘#7fc97f’, ‘#beaed4’, ‘#fdc086’, ‘#ffff99’, ‘#386cb0’, ‘#f0027f’, ‘#bf5b17’, ‘#666666’]
Blues-accessible	[‘#f7fbff’, ‘#deebf7’, ‘#c6dbef’, ‘#9ecae1’, ‘#6baed6’, ‘#4292c6’, ‘#2171b5’, ‘#08519c’, ‘#08306b’]
BrBG-accessible	[‘#543005’, ‘#8c510a’, ‘#bf812d’, ‘#dfc27d’, ‘#f6e8c3’, ‘#f5f5f5’, ‘#c7eae5’, ‘#80cdc1’, ‘#35978f’, ‘#01665e’, ‘#003c30’]
BuGn-accessible	[‘#f7fcfd’, ‘#e5f5f9’, ‘#ccece6’, ‘#99d8c9’, ‘#66c2a4’, ‘#41ae76’, ‘#238b45’, ‘#006d2c’, ‘#00441b’]
BuPu-accessible	[‘#f7fcfd’, ‘#e0ecf4’, ‘#bfd3e6’, ‘#9ebcda’, ‘#8c96c6’, ‘#8c6bb1’, ‘#88419d’, ‘#810f7c’, ‘#4d004b’]
Dark2-accessible	[‘#1b9e77’, ‘#d95f02’, ‘#7570b3’, ‘#e7298a’, ‘#66a61e’, ‘#e6ab02’, ‘#a6761d’, ‘#666666’]
GnBu-accessible	[‘#f7fcf0’, ‘#e0f3db’, ‘#ccebc5’, ‘#a8ddb5’, ‘#7bccc4’, ‘#4eb3d3’, ‘#2b8cbe’, ‘#0868ac’, ‘#084081’]
Greens-accessible	[‘#f7fcf5’, ‘#e5f5e0’, ‘#c7e9c0’, ‘#a1d99b’, ‘#74c476’, ‘#41ab5d’, ‘#238b45’, ‘#006d2c’, ‘#00441b’]
Greys-accessible	[‘#ffffff’, ‘#f0f0f0’, ‘#d9d9d9’, ‘#bdbdbd’, ‘#969696’, ‘#737373’, ‘#525252’, ‘#252525’, ‘#000000’]
Oranges-accessible	[‘#fff5eb’, ‘#fee6ce’, ‘#fdd0a2’, ‘#fdae6b’, ‘#fd8d3c’, ‘#f16913’, ‘#d94801’, ‘#a63603’, ‘#7f2704’]
OrRd-accessible	[‘#fff7ec’, ‘#fee8c8’, ‘#fdd49e’, ‘#fdbb84’, ‘#fc8d59’, ‘#ef6548’, ‘#d7301f’, ‘#b30000’, ‘#7f0000’]
Paired-accessible	[‘#a6cee3’, ‘#1f78b4’, ‘#b2df8a’, ‘#33a02c’, ‘#fb9a99’, ‘#e31a1c’, ‘#fdbf6f’, ‘#ff7f00’, ‘#cab2d6’, ‘#6a3d9a’, ‘#ffff99’, ‘#b15928’]
Pastel1	[‘#fbb4ae’, ‘#b3cde3’, ‘#ccebc5’, ‘#decbe4’, ‘#fed9a6’, ‘#ffffcc’, ‘#e5d8bd’, ‘#fddaec’, ‘#f2f2f2’]
Pastel2	[‘#b3e2cd’, ‘#fdcdac’, ‘#cbd5e8’, ‘#f4cae4’, ‘#e6f5c9’, ‘#fff2ae’, ‘#f1e2cc’, ‘#cccccc’ ]
PiYG-accessible	[‘#8e0152’, ‘#c51b7d’, ‘#de77ae’, ‘#f1b6da’, ‘#fde0ef’, ‘#f7f7f7’, ‘#e6f5d0’, ‘#b8e186’, ‘#7fbc41’, ‘#4d9221’, ‘#276419’]
PRGn-accessible	[‘#40004b’, ‘#762a83’, ‘#9970ab’, ‘#c2a5cf’, ‘#e7d4e8’, ‘#f7f7f7’, ‘#d9f0d3’, ‘#a6dba0’, ‘#5aae61’, ‘#1b7837’, ‘#00441b’]
PuBu-accessible	[‘#fff7fb’, ‘#ece7f2’, ‘#d0d1e6’, ‘#a6bddb’, ‘#74a9cf’, ‘#3690c0’, ‘#0570b0’, ‘#045a8d’, ‘#023858’]
PuBuGn-accessible	[‘#fff7fb’, ‘#ece2f0’, ‘#d0d1e6’, ‘#a6bddb’, ‘#67a9cf’, ‘#3690c0’, ‘#02818a’, ‘#016c59’, ‘#014636’]
PuOr-accessible	[‘#7f3b08’, ‘#b35806’, ‘#e08214’, ‘#fdb863’, ‘#fee0b6’, ‘#f7f7f7’, ‘#d8daeb’, ‘#b2abd2’, ‘#8073ac’, ‘#542788’, ‘#2d004b’]
PuRd-accessible	[‘#f7f4f9’, ‘#e7e1ef’, ‘#d4b9da’, ‘#c994c7’, ‘#df65b0’, ‘#e7298a’, ‘#ce1256’, ‘#980043’, ‘#67001f’]
Purples-accessible	[‘#fcfbfd’, ‘#efedf5’, ‘#dadaeb’, ‘#bcbddc’, ‘#9e9ac8’, ‘#807dba’, ‘#6a51a3’, ‘#54278f’, ‘#3f007d’]
RdBu-accessible	[‘#67001f’, ‘#b2182b’, ‘#d6604d’, ‘#f4a582’, ‘#fddbc7’, ‘#f7f7f7’, ‘#d1e5f0’, ‘#92c5de’, ‘#4393c3’, ‘#2166ac’, ‘#053061’]
RdGy	[‘#67001f’, ‘#b2182b’, ‘#d6604d’, ‘#f4a582’, ‘#fddbc7’, ‘#ffffff’, ‘#e0e0e0’, ‘#bababa’, ‘#878787’, ‘#4d4d4d’, ‘#1a1a1a’]
RdOrYI-accessible	[‘#eea8b6’, ‘#de536f’, ‘#bd2525’, ‘#772b28’, ‘#e44838’, ‘#ee5502’, ‘#ffbf1f’, ‘#ffdc85’]
RdPu-accessible	[‘#fff7f3’, ‘#fde0dd’, ‘#fcc5c0’, ‘#fa9fb5’, ‘#f768a1’, ‘#dd3497’, ‘#ae017e’, ‘#7a0177’, ‘#49006a’]
RdYlBu-accessible	[‘#a50026’, ‘#d73027’, ‘#f46d43’, ‘#fdae61’, ‘#fee090’, ‘#ffffbf’, ‘#e0f3f8’, ‘#abd9e9’, ‘#74add1’, ‘#4575b4’, ‘#313695’]
RdYlGn	[‘#a50026’, ‘#d73027’, ‘#f46d43’, ‘#fdae61’, ‘#fee08b’, ‘#ffffbf’, ‘#d9ef8b’, ‘#a6d96a’, ‘#66bd63’, ‘#1a9850’, ‘#006837’]
Reds-accessible	[‘#fff5f0’, ‘#fee0d2’, ‘#fcbba1’, ‘#fc9272’, ‘#fb6a4a’, ‘#ef3b2c’, ‘#cb181d’, ‘#a50f15’, ‘#67000d’]
Set2-accessible	[‘#66c2a5’, ‘#fc8d62’, ‘#8da0cb’, ‘#e78ac3’, ‘#a6d854’, ‘#ffd92f’, ‘#e5c494’, ‘#b3b3b3’]
Set1	[‘#e41a1c’, ‘#377eb8’, ‘#4daf4a’, ‘#984ea3’, ‘#ff7f00’, ‘#ffff33’, ‘#a65628’, ‘#f781bf’, ‘#999999’]
Set3	[‘#8dd3c7’, ‘#ffffb3’, ‘#bebada’, ‘#fb8072’, ‘#80b1d3’, ‘#fdb462’, ‘#b3de69’, ‘#fccde5’, ‘#d9d9d9’, ‘#bc80bd’, ‘#ccebc5’, ‘#ffed6f’]
Spectral	[‘#9e0142’, ‘#d53e4f’, ‘#f46d43’, ‘#fdae61’, ‘#fee08b’, ‘#ffffbf’, ‘#e6f598’, ‘#abdda4’, ‘#66c2a5’, ‘#3288bd’, ‘#5e4fa2’]
YlGn-accessible	[‘#ffffe5’, ‘#f7fcb9’, ‘#d9f0a3’, ‘#addd8e’, ‘#78c679’, ‘#41ab5d’, ‘#238443’, ‘#006837’, ‘#004529’]
YlGnBu-accessible	[‘#ffffd9’, ‘#edf8b1’, ‘#c7e9b4’, ‘#7fcdbb’, ‘#41b6c4’, ‘#1d91c0’, ‘#225ea8’, ‘#253494’, ‘#081d58’]
YlOrBr-accessible	[‘#ffffe5’, ‘#fff7bc’, ‘#fee391’, ‘#fec44f’, ‘#fe9929’, ‘#ec7014’, ‘#cc4c02’, ‘#993404’, ‘#662506’]
YlOrRd-accessible	[‘#ffffcc’, ‘#ffeda0’, ‘#fed976’, ‘#feb24c’, ‘#fd8d3c’, ‘#fc4e2a’, ‘#e31a1c’, ‘#bd0026’, ‘#800026’]
DefaultQualitative	[‘#0095b7’, ‘#a0b774’, ‘#f4c658’, ‘#fe8b3e’, ‘#cf2f23’, ‘#756c56’, ‘#007896’, ‘#47a694’]
DefaultSequential-accessible	[‘#ffdc9c’, ‘#ffc65f’, ‘#efc15e’, ‘#9eb778’, ‘#7eb184’, ‘#43a79b’, ‘#008db6’, ‘#097bb1’]

Specify Colors

You can specify colors using:

• The color name (for example “cornflowerblue” or “red”). For valid color names, see https://www.w3schools.com/cssref/css_colors.asp.
• RGB color encoding (for example, rgb(255,0,0)). For RGB color values, see https://www.rapidtables.com/web/color/RGB_Color.html.
• Hexadecimal color encoding (for example, #0096b6). For hexadecimal color values, see https://www.rapidtables.com/web/color/RGB_Color.html.
