Maintain Custom Charts Using the Custom Chart CLI

Describes the custom chart management tasks you can perform using the custom chart CLI.

Self-Service Analytics’s Custom Chart Command Line Interface (CLI) allows developers to create, manage, and delete custom charts without being connected to the client application. The CLI tool uses Node.js and is installed locally via npm. Details about the custom chart CLI can also be found in https://www.npmjs.com/package/composer-chart-cli.

Before installing Self-Service Analytics’s custom chart CLI, verify that Node.js version 10 or later and npm version 5.6 or later are installed on your machine.

After it is installed and configured, the custom chart CLI behaves much like any other command line tool. You can build projects, run tests, and push new visuals using npm scripts. The custom chart CLI also supports the configuration of multimetric and group variables.

For a full list of common commands, see Commands for the Custom Chart CLI. A step-by-step tutorial for creating a custom chart can be found in A Custom Chart Tutorial.

This section covers the following topics:

• Supported Custom Chart CLI Versions
• Install and Configure the Custom Chart CLI
• Create a Custom Chart Using the CLI
• Install Dependencies and Build the Custom Chart Using the CLI
• Edit the Custom Chart Using the CLI
• Push the Custom Chart to the Server Using the CLI
• Remove a Custom Chart from the Server Using the CLI
• List All Custom Charts on the Server Using the CLI
• Import a Custom Chart Using the CLI
• Custom Chart Support for Cross-Visual Links and Filters

You can also perform some maintenance tasks for custom charts using the user interface. See Manage Custom Charts in the UI.

Install and Configure the Custom Chart CLI

Before installing Self-Service Analytics’s custom chart CLI, verify that Node.js version 10 or later and npm version 5.6 or later are installed on your machine.

Install and configure the custom chart CLI:

1. Install the custom chart CLI by running the following:

   $ npm install composer-chart-cli@<x> -g


2. After installation, you can configure the default environment that is used by the custom chart CLI. This makes creating and pushing custom charts easier, as you do not have to provide the server URL and credentials with every command. Run the following to start the configuration process:

   $ cmp-chart config


3. Follow the prompts to store your default server configuration in an encrypted file. After the server configuration has been saved, the CLI checks for the presence of this file when you omit the server URL and credentials when running commands.

4. After installing, you can create new visuals or make updates to current custom charts.

Commands for the Custom Chart CLI

Access a list of custom chart CLI commands at any time by running cmp-chart. For help on any command, simply enter its name or enter cmp-chart help. For example, entering cmp-chart init without any parameters will show the help for the cmp-chart init command.

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Common Commands

Command	Usage
config	Sets up an encrypted configuration of the servers URL and credentials.
edit	Edits the visual’s controls, components, libraries, variables, etc. Updates are not automatically pushed to the serve.
help	Provides help for the custom chart CLI.
import	Imports a visual in a zip file.
init	Creates a new visual in a folder you specify.
ls	Lists the custom charts.
push	Pushes the bundled format of the visual to the server.
rm	Removes a custom chart or library from the server.
watch	Watches the changes in custom chart files and updates them.

Syntax

$ cmp-chart config <options>

Defines an encrypted configuration of Self-Service Analytics’s server URL and admin credentials.

Parameters

• server (ex. http://myserver.com:8080/discovery)
• user name
• password

Options

• -h, —help output usage information

$ cmp-chart edit <visualname>

Edits a Self-Service Analytics custom chart.

You can edit the following elements:

• Components
• Controls
• Libraries
• Name
• Visibility

Provides help for the custom chart CLI. Alternatively, you get help for a specific command:

$ cmp-chart help <command>

For example:

$ cmp-chart help import

$ cmp-chart import <options> <visualname> <filepath>

Imports a custom chart to the Self-Service Analytics server.

Options

• -a, —app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -u, —user [user:password] Specify the user name and password to use for server authentication.
• -h, —help output usage information

$ cmp-chart init <options> <path-to-visual>

Creates a custom chart.

Options

• -t, —type <type> Specify the visual type. Valid values are single-group, multi-group, or raw. The default is single-group.
• -h, —help output usage information

$ cmp-chart ls <options>

Lists the custom charts you have created.

• -a, —app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -u, —user [user:password] Specify the user name and password to use for server authentication.
• -h, —help output usage information

$ cmp-chart push [options]

Pushes a custom chart in its current state to the Self-Service Analytics server.

Options

• -a, —app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -d, —dir [path/to/source/files] Directory used to look for the visual to push.
• -u, —user [user:password] Specify the user name and password to use for server authentication.
• -h, —help output usage information

$ cmp-chart rm [options]

Removes a custom chart from the Self-Service Analytics server.

Options

• -a, —app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -u, —user [user:password] Specify the user name and password to use for server authentication.
• -h, —help output usage information

$ cmp-chart watch [options]

Watches for changes in custom chart files and updates them in the Self-Service Analytics server.

Options

• -a, —app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -d, —dir [path/to/source/files] Directory used to look for the visual to watch.
• -u, —user [user:password] Specify the user name and password to use for server authentication.
• -h, —help output usage information

Create a Custom Chart Using the CLI

A complete example of creating a custom chart using the custom chart CLI can be found in A Custom Chart Tutorial.

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Create a custom chart locally using the custom chart CLI

1. Open the Self-Service Analytics CLI.

2. Run the following command to create the visual.

   $ cmp-chart init <path-to-visual>


   Optionally, you can provide a type parameter. Valid values are single-group, multi-group, or raw. The default is single-group. For example:

   $ cmp-chart init -t multi-group <path-to-visual>


The cmp-chart init command creates a directory in the specified path containing the files you need to get started. Here is a preview of the directory tree:

The following table describes the function of each file in the tree:

File	Description
package.json	Lists the packages your visual depends on. For more information, see https://docs.npmjs.com/creating-a-package-json-file.
src/index.css	Your visual’s CSS (style sheet) code.
src/index.js	Your visual’s JavaScript code. Additional files can be used and imported into this file.
visualization.json	Contains the name, controls, and variables of your visual.
webpack.config.js	The webpack configuration. Webpack is used in visuals to bundle your code into a single file.

Edit the Custom Chart Using the CLI

Edit a custom chart using the custom chart CLI

Make sure you are in the visual’s folder and run the following edit command:

$ cmp-chart edit

Alternatively, you can specify the path to the visual in the edit command. For example:

$ cmp-chart edit -d <path-to-visual>

After running the edit command, follow the prompts to update the visual’s controls, name, variables, or visibility.

When all edits are finished, be sure to rebuild the visual before pushing it to the server. See Install Dependencies and Build the Custom Chart Using the CLI.

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Install Dependencies and Build the Custom Chart Using the CLI

To install dependencies and build the custom chart using the custom chart CLI:

1. Run the following command at the root level of the newly created custom chart to install dependencies:

   npm install


2. Run the following command at the root level of the custom chart to build the chart:

   $ npm run build


Custom chart CLI version 5 only supports the use of vnd.composer.v2+json as the Content-Type for API routes. CLI version 4 only supports the use of vnd.zoomdata.v2+json.

Push the Custom Chart to the Server Using the CLI

Push the custom chart to the server using the Custom Chart CLI

Run the following command:

$ cmp-chart push

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Import a Custom Chart Using the CLI

Import a custom chart using the custom chart CLI

Run the cmp-chart import command, specifying the path to the library. You can import visual zip files that were downloaded from the Manage Custom Charts page or a custom chart created with an older version of the CLI.

$ cmp-chart import [options] <visualname> <path-to-visual>

where <path-to-visual> is the relative path to the zip file containing the visual you want to import.

The following options are available:

• -a, -app [URL] Specify the Self-Service Analytics application server URL (e.g. https://myserver/discovery)
• -u, -user [user:password] Specify the user name and password to use for server authentication.
• -h, -help Output usage information

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

A custom chart is bundled before it is pushed to the Self-Service Analytics server. This creates a /dist directory containing the necessary files required to send the visual to the Self-Service Analytics server. This /dist custom chart zip file is not compatible with the cmp-chart import command and cannot be imported using the Manage Custom Charts page in the UI. To import the /dist custom chart zip file, use the cmp-chart push command instead.

List All Custom Charts on the Server Using the CLI

List all custom charts stored on the Self-Service Analytics server using the Custom Chart CLI

Run the following command:

$ cmp-chart ls

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Remove a Custom Chart from the Server Using the CLI

Remove a custom chart from the server using the Custom Chart CLI

Run the following command:

$ cmp-chart rm

After running the command you will be prompted to select the visual name and confirm its deletion.

Self-Service Analytics Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

Migrate Custom Charts

Custom charts in Self-Service Analytics can be created and managed using the Logi Composer Custom Chart CLI tool.

• Logi Composer Custom Chart CLI version 1 (composer-chart-cli) supports Logi Composer 7.10 and later.
• CLI version 6 (zoomdata-chart-cli) supports Composer 7.10 and earlier.
• CLI version 5 (zoomdata-chart-cli) supports Composer 7.9 and earlier.

Install Logi Composer Custom Chart CLI version 1 globally. Existing custom charts from older CLI versions (5 and 6) use the same directory structure as the Logi Composer Custom Chart CLI version 1 directory structure.

The following table lists the version of the CLI compatible with different versions of Self-Service Analytics.

CLI Version	Supported Versions
1	Logi Composer 7.10 and later. Self-Service Analytics 26.3 and later (composer-chart-cli)
6	Logi Composer 7.9 and later. (zoomdata-chart-cli)
5	Logi Composer 6.9 and through Logi Composer 7.8 and earlier. (zoomdata-chart-cli)

File Structure

The custom chart file structure for supported versions of custom charts:

• Logi Composer Custom Chart CLI v1 (composer-chart-cli)
• CLI v6 (zoomdata-chart-cli)
• CLI v5 (zoomdata-chart-cli)

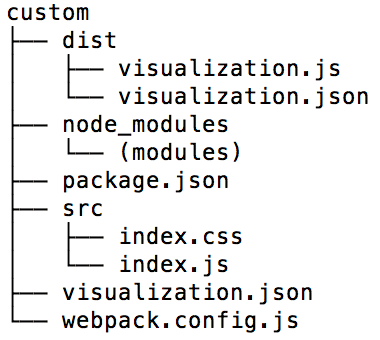

Custom Chart CLI File Structure

API Route Differences

Composer Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

CLI Commands

The command differences between CLI versions are described in the following table:

Command v1	Command v5/v6	Description
cmp-chart import <zip-file-path>	zd-chart import <zip-file-path>	Import a visual in a zip file.
cmp-chart init	zd-chart init	Create a new visual in a folder you specify.
cmp-chart edit	zd-chart edit	Update the visual locally, but no longer push the updated visual to the server.
cmp-chart push	zd-chart push	Push a custom chart to the server.
cmp-chart watch	zd-chart watch	Watch changes in the src directory and pushes them to the server.

If you need to migrate custom charts from an unsupported version of Logi Composer, contact Technical Support for assistance.

Supported Custom Chart CLI Versions

Custom charts in Self-Service Analytics can be created and managed using the Custom Chart CLI tool.

Logi Composer Custom Chart CLI version 1 (composer-chart-cli) supports Logi Composer 7.10 and later, through this current release.

Logi Composer Custom Chart CLI version 1 only supports the use of vnd.composer.v3+json as the Content-Type for API routes.

A custom chart is bundled before it is pushed to the Self-Service Analytics server. Bundling can be accomplished using a tool such as webpack. This creates a /dist directory containing the necessary files required to send the visual to the server.

Existing custom charts from older CLI versions use the same directory structure as the Logi Composer Custom Chart CLI version 1 directory structure.
